Asset LED
Standard
Asset LED
With Microwave Sensor
Asset LED
With Emergency Pod
Specification
Asset LED
Single & Twin Lens Options
IP66
High output LED
Asset LED with microwave sensor
Single & Twin Lens Options
IP20
IP65 available to special order
High output LED
Asset LED with emergency pod
Single & Twin Lens Options
IP65
High output LED
Sensing &
Emergency
Asset LED with microwave sensor
The Asset LED with microwave sensor is used for vacancy and presence detection. This enables the luminaire to switch on when workers are present and dim when the space is vacant. Timing to ‘off’ is also an option. The microwave sensor allows for the integration of daylight harvesting, adjusting the lights up or down depending on the amount of natural light within the space.
Asset LED with emergency pod
The Asset LED with emergency lighting pod delivers illumination during power outages. This fitting has a classification of C0=D63 C90=D50, The emergency pod is powered by a rechargeable lithium ion battery, and has an emergency lumen output in accordance with AS2293.1.
Electrical
Asset LED
1x24W
Model: FPA 05124
LED: 1x24W
Length: 465mm
Lumens: 2940lm
Voltage: 240v
Current: 0.17A
Circuit Power: 30W: λ0.98
1x48W
Model: FPA 08148
LED: 1x48W
Length: 745mm
Lumens: 5880lm
Voltage: 240v
Current: 0.33A
Circuit Power: 54W: λ0.98
1x72W
Model: FPA 11172
LED: 1x72W
Length: 1025mm
Lumens: 8820lm
Voltage: 240v
Current: 0.48A
Circuit Power: 78W: λ0.98
2x24W
Model: FPA 05224
LED: 2x24W
Length: 465mm
Lumens: 5880lm
Voltage: 240v
Current: 0.33A
Circuit Power: 54W: λ0.98
2x48W
Model: FPA 08248
LED: 2x48W
Length: 745mm
Lumens: 11760lm
Voltage: 240v
Current: 0.68A
Circuit Power: 102W: λ0.98
2x72W
Model: FPA 11272
LED: 2x72W
Length: 1025mm
Lumens: 17640lm
Voltage: 240v
Current: 1.00A
Circuit Power: 150W: λ0.98
Asset LED with microwave sensor
1x48W Microwave Sensor
Model: FPA 08148MS
LED: 1x48W
Length: 830mm
Lumens: 5880lm
Voltage: 240v
Current: 0.33A
Circuit Power: 54W: λ0.98
1x72W Microwave Sensor
Model: FPA 11172MS
LED: 1x72W
Length: 1110mm
Lumens: 8820lm
Voltage: 240v
Current: 0.48A
Circuit Power: 78W: λ0.98
2x48W Microwave Sensor
Model: FPA 08248MS
LED: 2x48W
Length: 830mm
Lumens: 11760lm
Voltage: 240v
Current: 0.68A
Circuit Power: 102W: λ0.98
2x72W Microwave Sensor
Model: FPA 11272MS
LED: 2x72W
Length: 1110mm
Lumens: 17640lm
Voltage: 240v
Current: 1.00A
Circuit Power: 150W: λ0.98
Microwave Sensor Specifications
Model: Microwave Sensor
Standby Power: 0.5W
Max Mounting Height: 10m
IP20 Standard
IP65 to special order
Asset LED with emergency pod
1x48W Emergency
Model: FPA 08148EM
LED: 1x48W
Length: 830mm
Lumens: 5880lm
Voltage: 240v
Current: 0.33A
Circuit Power: 54W: λ0.98
1x72W Emergency
Model: FPA 11172EM
LED: 1x72W
Length: 1110mm
Lumens: 8820lm
Voltage: 240v
Current: 0.48A
Circuit Power: 78W: λ0.98
2x48W Emergency
Model: FPA 08248EM
LED: 2x48W
Length: 830mm
Lumens: 11760lm
Voltage: 240v
Current: 0.68A
Circuit Power: 102W: λ0.98
Emergency Pod Specifications
Model: Emergency Pod
LED: 2x3W
Voltage: 240v
Circuit Power: 0.4W
Classification: C0=D63 C90=D50
Batteries: Lithium Ion 3.3Volt 2.5Ah
Standards: Emergency lumen output in accordance with AS2293.1
Specify when ordering: Medium beam – 60º lens or Wide beam – diffused lens.
Dimensions

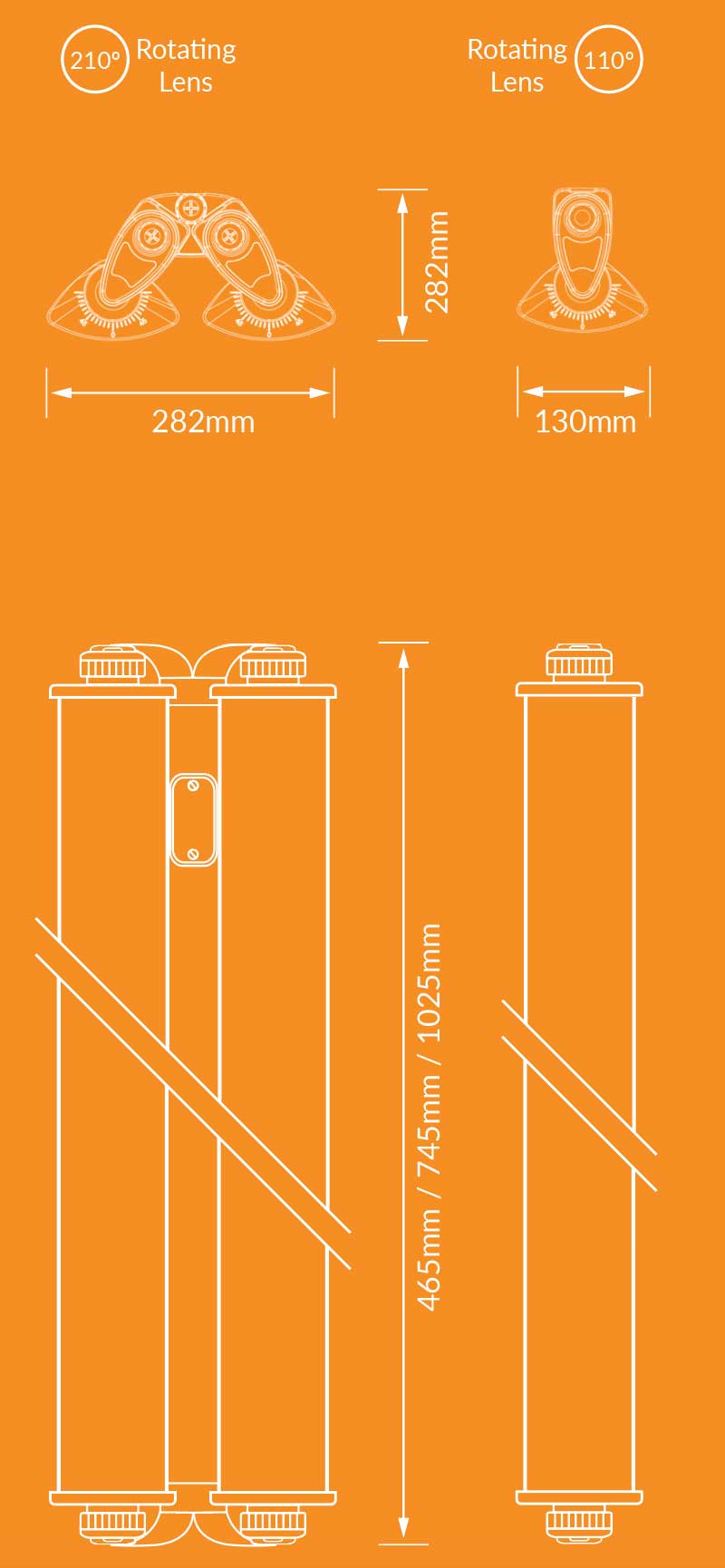

Asset LED

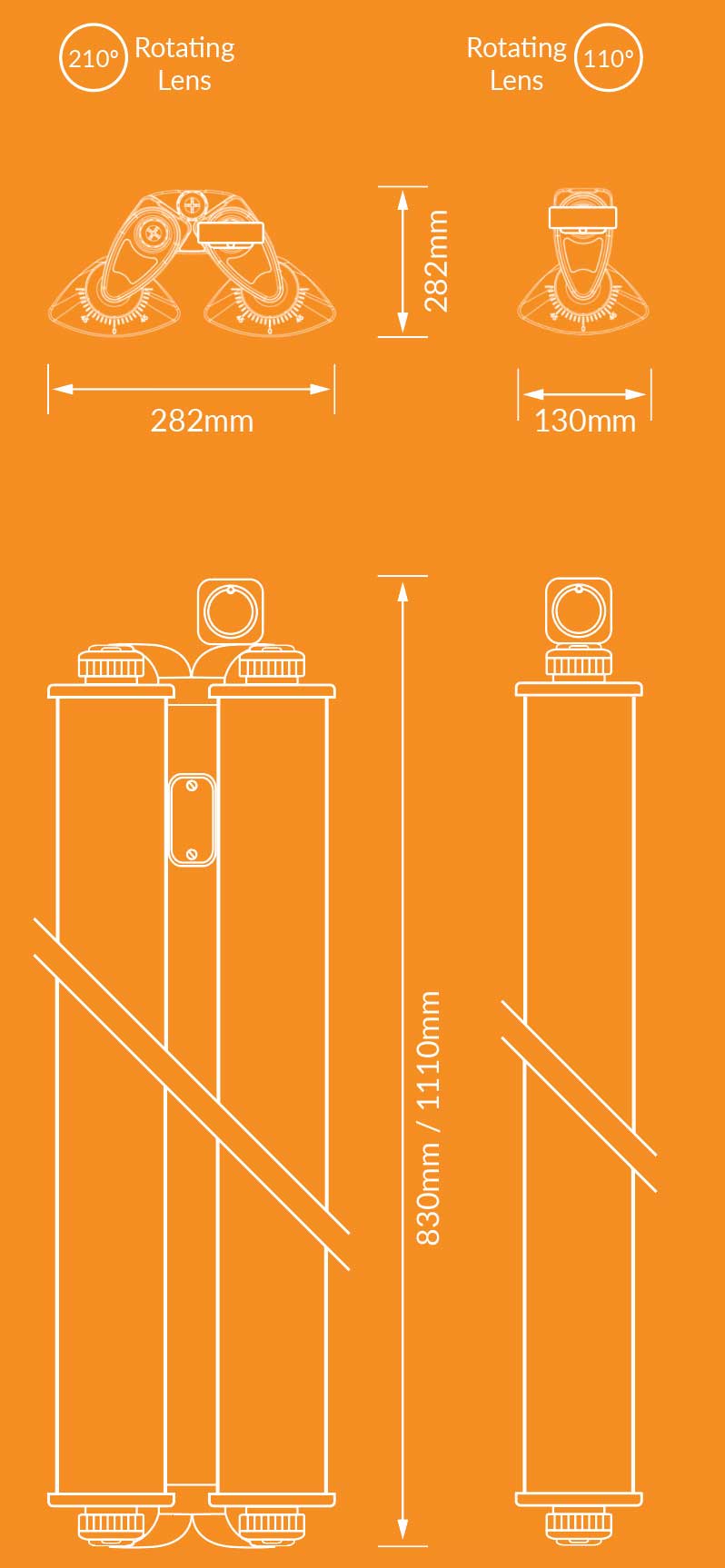

Asset with microwave sensor

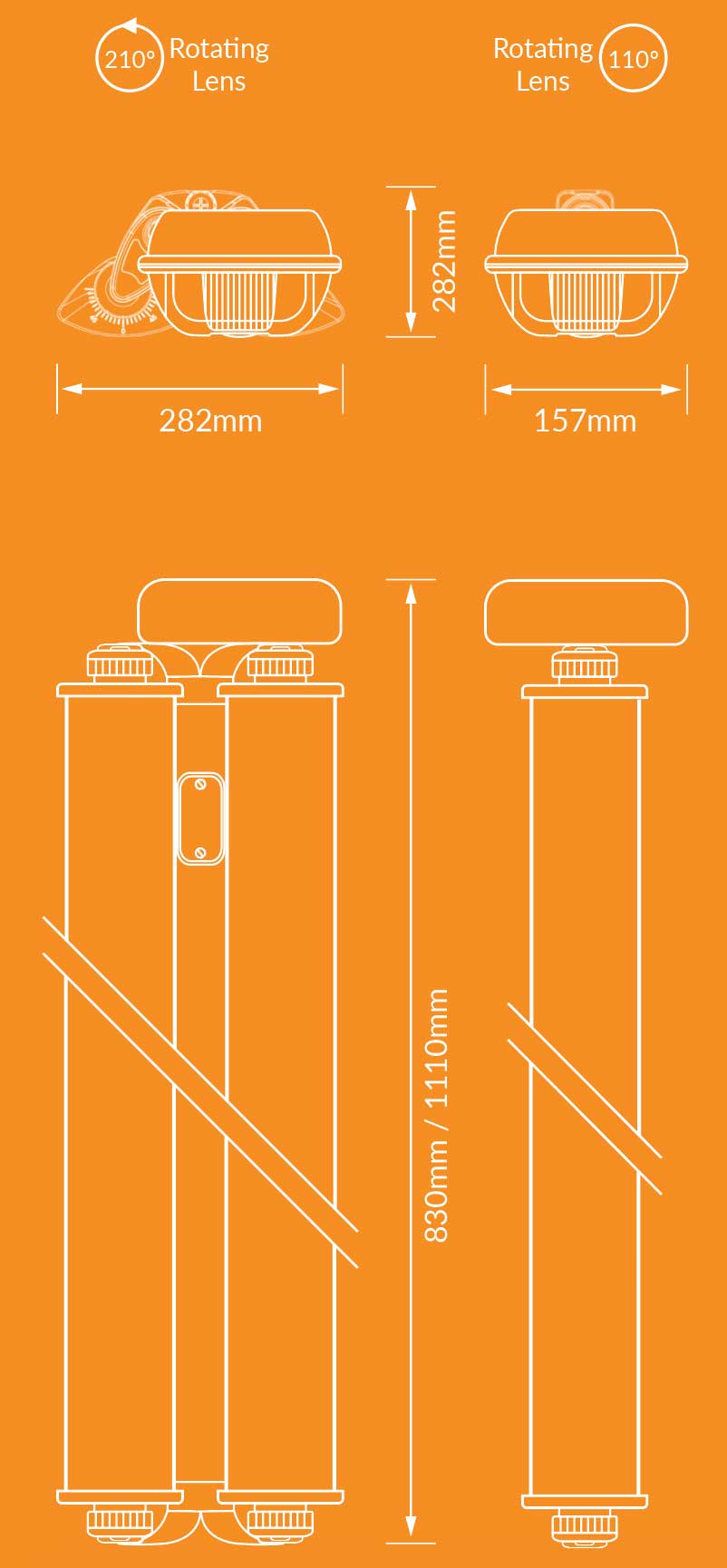

Asset LED with emergency pod
Construction
Body: 6000 Series extruded aluminium. Lens: Advanced high impact, UV stabilised polycarbonate. Optical Components: Frosted diffuser or 60º optical lens. Injection moulded polymer components for durability and long life.
Mounting
The Asset range includes a set of custom designed stainless steel snap-on clips. The clips allow for a fast and simple installation for either surface mounting, suspension, or vertical/horizontal wall mounting. Additional safety over-clips are supplied for peace of mind, knowing the light fittings are secure in all conditions.
Options
CCT: Standard 4000K; Optional 3000K, 5000K, 6000K
Dali: Dimmable Option
Photometry

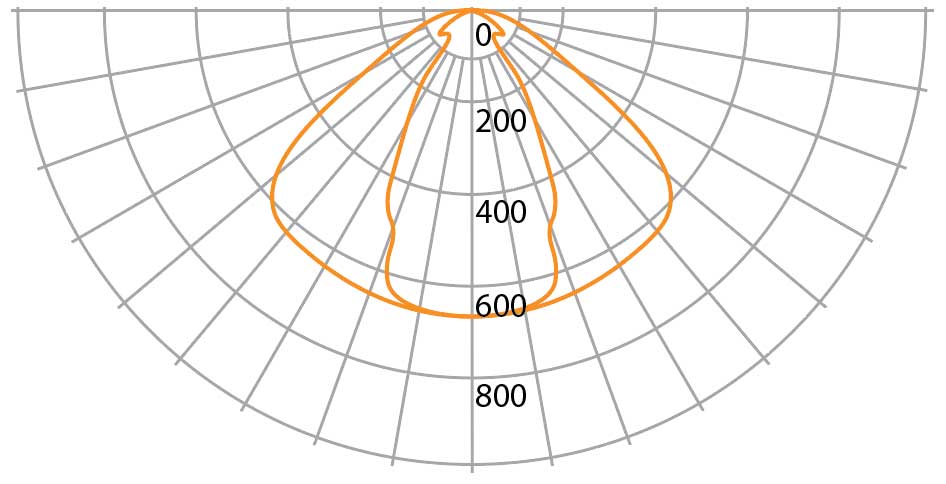

Asset LED with 60º lens

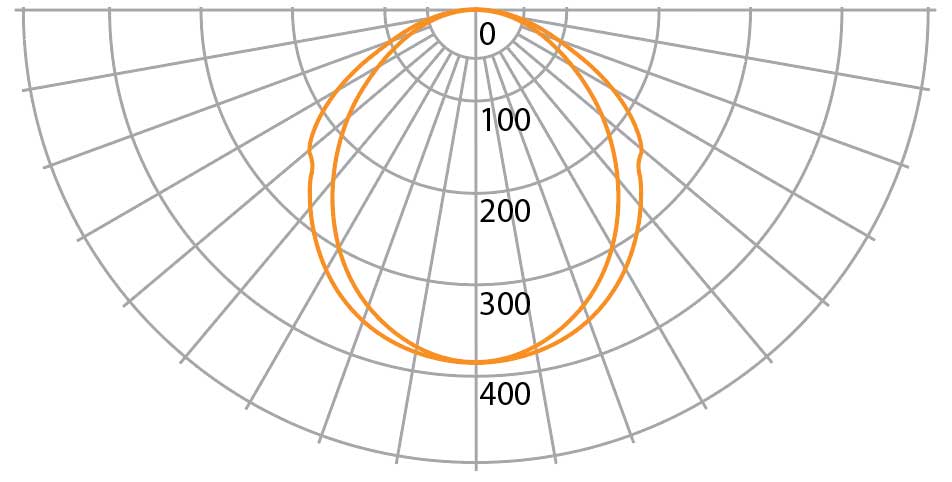

Asset LED with diffused lens

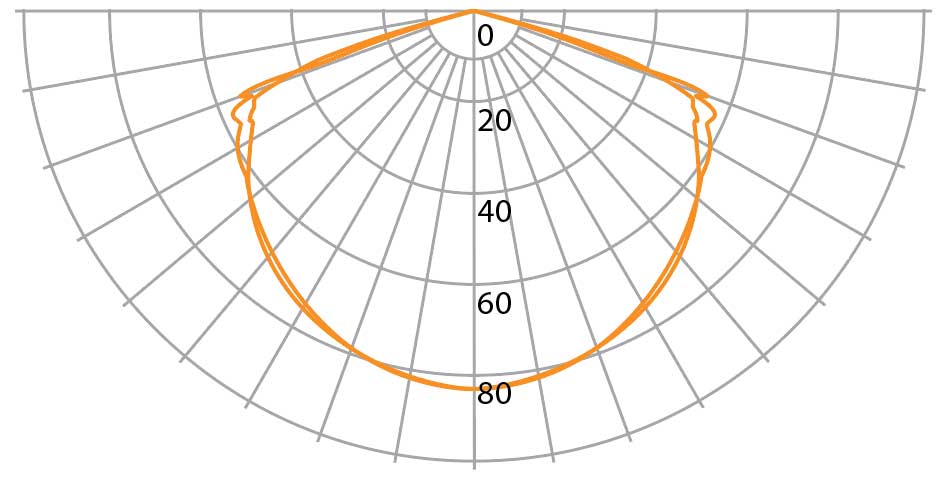

Emergency pod
